उत्पाद विवरण:
|
| प्रमुखता देना: | stainless steel pressure welded grating,platform steel grating plate,pressure welded steel grating |
||
|---|---|---|---|

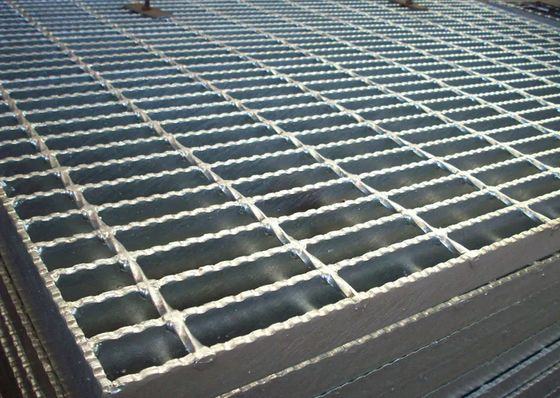

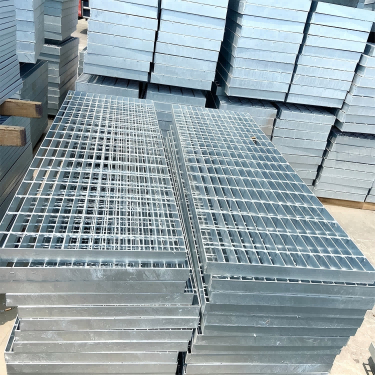

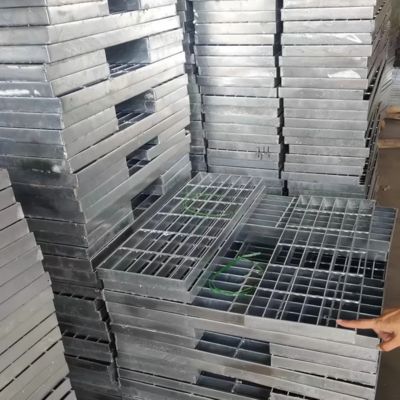

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.
Mild carbon steel provides an economical, high strength for use in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
| Load Bearing Flat Bar size | Thickness≥3mm, depth ≥19mm |
|---|---|
| 19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5.....40X6, 40X8, 40X10,....90X6.... | |
| Pitch of Load bearing flat bars(mm) | 12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80... |
| Pitch of cross bars(mm) | 38.1, 50, 50.8, 70, 75, 80, 99,100, 101.6, 102... |
| Country | Steel grating standard | Steel material standard | Hot galvanizing standard |
|---|---|---|---|
| China | YB/T4001-1998 | GB 700-88 | GB/T13912-2002 |
| USA | ANSI/NAAMM(MBG531-88) | ASTM (A36) | ASTM(A123) |
| England | BS4592-1987 | BS4360 (43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
