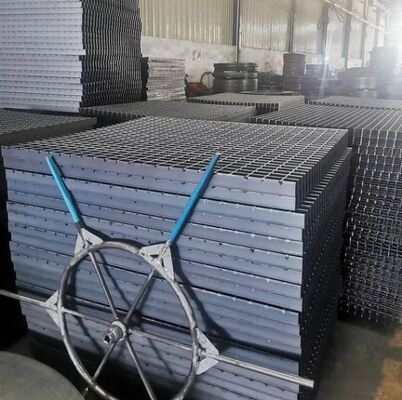

Heel Guard Mini Mesh Plain Stainless Steel Bar Grating
Our stainless steel bar grating features high strength and firm construction, manufactured from premium materials including carbon steel, aluminum steel, or stainless steel. Available in various manufacturing methods and surface types, these gratings offer versatile solutions for industrial and commercial applications.
Manufacturing Methods
- Welded grating
- Press-locked grating
- Swage-locked grating
- Riveted grating
Surface Types
- Smooth surface grating
- Serrated surface grating
Applications
With various styles and sizes available, steel gratings are widely used in stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, and heavy-duty construction applications.
Standard Grating Types
30mm Bearing Bar Pitch
The most widely used type in industrial applications, featuring the strongest resistance to surface lash with 30mm spacing between bearing bars.
40mm Bearing Bar Pitch
The most economical and lightweight option, ideal for applications with smaller spans.
60mm Bearing Bar Pitch (Mining Industry)
Specifically developed for mining applications with 60mm bearing bar pitch and 50mm cross bar pitch, effectively solving mineral splash problems on plates.
30/76mm Pitch Combination
The most popular type used domestically and internationally, featuring 30mm bearing bar spacing and 76mm cross bar spacing, suitable for walkways, platforms, and various applications.
Technical Specifications
| Specification |
Description |
| Material |
304, 304L, 316, 316L stainless steel |
| Manufacturing Process |
Welded, swage-locked, or press-locked |
| Surface Type |
Standard plain surface, serrated surface |
| Cross Bar Spacing |
2" or 4", center to center |
| Bearing Bar Spacing |
15/16" or 1-3/16", center to center |
| Bearing Bar Height |
20mm to 60mm |
| Bearing Bar Thickness |
2mm to 5mm |
| Cross Bar Size |
4mm to 10mm diameter |
| Slip Resistance |
Serrated or plain surface, depending on application |
| Installation Method |
Welding, clips, or bolts and nuts, depending on application |
| Compliance |
Meets industry standards including ASTM, ISO, and ANSI/NAAMM |
For detailed safe load data and engineering specifications, please contact our engineering team for comprehensive technical support.
